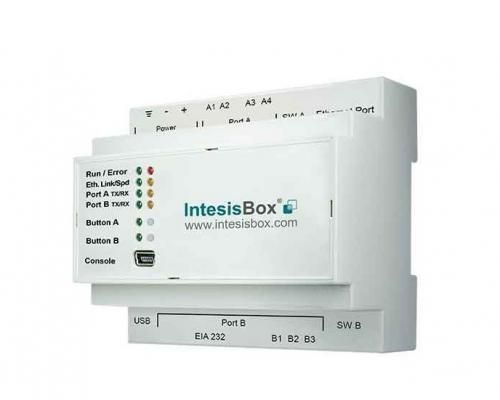

Шлюз Modbus TCP RTU Master в сеть KNX TP (250 точек) IBOX-KNX-MBM-250
Шлюз KNX - Modbus Master RTU (EIA-485) и Modbus Client TCP, для подключения к сети управления KNX, до 250 точек ввода-вывода, на DIN рейку, 5TE
Functionality From the Modbus system point of view, after the start up process, Intesis reads continuously the points configured to be read in the Modbus TCP Server and/or Modbus RTU Slave devices and updates in its memory all the values received from the Modbus system. Every one of the mentioned Modbus points is associated to a KNX group address, with this, all the Modbus system is seen as one more KNX device from the KNX system point of view, with the same configuration and operation characteristics. When a change in any Modbus point occurs, a write telegram is sent to the KNX bus, of the associated KNX Group. See details in section 4. When a telegram is received from the KNX bus, of a KNX Group address associated to a Modbus point, a message is sent immediately to the corresponding Modbus device to perform the corresponding action. In the continuous polling of the Modbus devices, if a non-response of the Modbus device is detected, the corresponding virtual signal inside Intesis will be activated indicating communication error with the Modbus device. These virtual signals indicating communication status in real time with the Modbus devices are also accessible from KNX, like the rest of the points of Intesis.
АРАКТЕРИСТИКИ

Сертифицирован KNX.
Поддержка только Modbus RTU (RS485).
Поддержка KNX ТП.
Поддерживает стандартные точки данных KNX (DPT), что гарантирует бесшовную интеграцию с любым устройством или системой KNX.
Операции для каждого сигнала для адаптации регистра Modbus к требовательным установкам KNX: например, умножение, деление и равенство.
Уменьшенные габариты, компактный корпус.
До 100 объектов связи.
До 255 устройств Modbus.
Простая интеграция и настройка со стандартной базой данных ETS.
